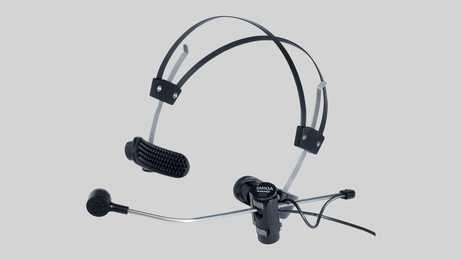

SM10 Headset Microphone

The SM10 Headset is a low-impedance, unidirectional dynamic microphone designed for close-talk head-worn applications.

Best suited to: Speech

Dynamic Cardioid

The Shure SM10A is a low-impedance, unidirectional dynamic microphone designed for close-talk head-worn applications such as remote-site sports broadcasting and corporate intercom systems. It is also ideal for singing drummers, keyboard artists, and other performers who need a head-worn vocal microphone with superior noise rejection and a smooth, natural-sounding frequency response.

The SM10A is very lightweight and is typically mounted on the supplied steel headband assembly. An adjustable pivot on the headband assembly allows the microphone boom to be moved 20 degrees in any direction. The boom also slides out so the microphone can be positioned up to 89 mm (3 1/2 in.) from the pivot housing.A supplied windscreen reduces wind noise and explosive breath sounds.

Features
  • Close-talk design provides excellent isolation and minimizes gain-before-feedback
  • Extremely rugged with fully adjustable headband and microphone boom
  • Unidirectional(cardioid) polar pattern for superior rejection of unwanted sound
  • A clip that fits over the XLR connector and attaches to the user's belt or waistband, providing cable strain relief


  • Technical Data

    Transducer Type Dynamic
    Polar Pattern Cardioid
    Frequency Response 50 Hz – 15 KHz
    Sensitivity (dBV/Pa) -65 dBV/Pa
    Sensitivity (mV/Pa) 0.45 mV/Pa


  • Downloads

    PDF SM10 User Guide
    English
